Classic Dodge D100/D150/D200 Pickup Lift Kit Guide (1972–1993)
A good Dodge D100 lift kit raises a classic D-series truck with front coil spring spacers, rear lift blocks and longer shocks, and it keeps the steering geometry close to stock. The right kit fits your exact year, your drivetrain, and your spring type.
Ridetrendz built this guide for owners of 72-93 trucks who want honest fitment help. Old springs sag, old hardware fights back, and the wrong kit wastes a weekend. Read in order,r and you will know your truck, your options, ns and your budget.
Quick Answers for Classic Dodge Owners
Start here for the short version, and read on for the full detail. The five points below cover the kit formula, the drivetrain split, the heights owners choose most, and the two checks that protect the whole job, a fitment check before you order and a proper alignment after the install.
Quick Summary
- The classic Dodge D100 lift kit formula pairs front coil spacers with rear blocks and matched shocks
- Two-wheel-driveive trucks lift at the coil springs, and Four Wheel Drive trucks lift at the leaf springs.
- A mild level adds about 2 inches, and a full kit adds about 3 inches up front.
- An alignment after the install protects your tires and your steering feel.
- Fresh hardware matters on a classic, because rusted bolts snap and old springs sag.
Still weighing lift against leveling, then read our lift kit versus leveling kit guide before you spend anything.
Source: Wikipedia Car Suspension

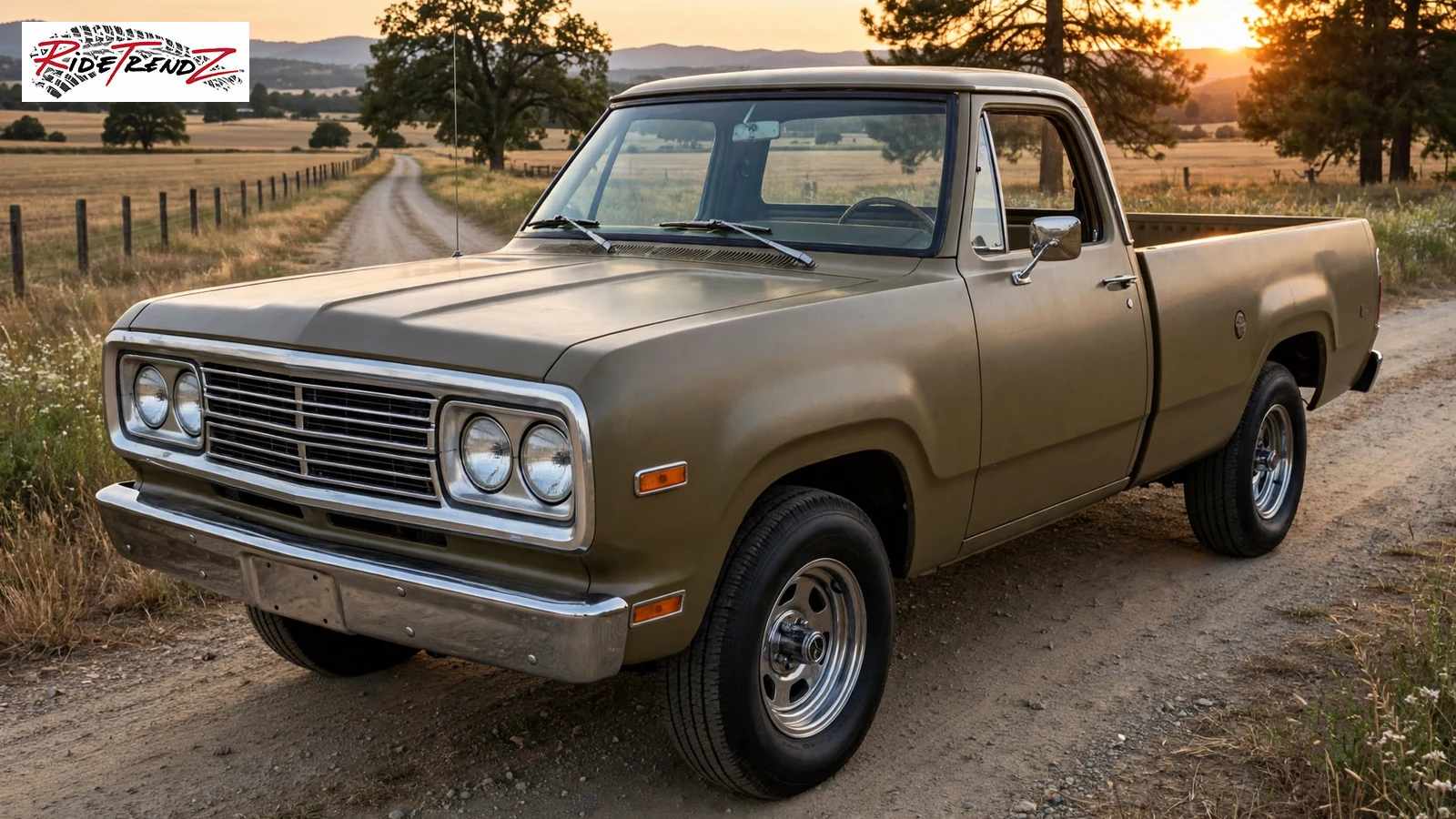

Meet the D Series Family Before You Lift
Every Dodge D100 lift kit decision starts with your fender badge. Dodge built the D series, and the range covers half-ton, three-quarter-ton, and work truck models. The badge tells you spring sizes, bolt patterns and kit family you need. Owners trade fitment notes on Moparts forums, and the first lesson is the same.
Our classic truck lift kit guide shows how badge families work across brands.
Source: Wikipedia Dodge D Series
D100 and D150 Half Ton Basics
The D100 launched the range as the half-ton entry, and the D150 badge replaced it in the later years. Both ride on front coil springs and rear leaf springs in two-wheel drive form.
A spacer lift wakes these half-ton trucks up without stressing the front end or asking for new arms.
Source, Wikipedia Dodge D Series
D200 and D250 Three Quarter Ton Differences
The D200 stepped up to heavier springs and a stronger rear end, and the D250 badge carried that role into the Ram era years. Think of this pair as the grandfather of the later 2500 class.
A D200 runs thicker leaves and bigger hardware than its half-ton brothers, and it tows with less squat under load.
Source: Wikipedia Dodge D Series
D300 and W Series Trucks Explained
The D300 topped the line as the 1-ton truck, a one-ton workhorse. Lift a 1 ton with respect for the one ton rear springs, and buy hardware rated for the weight.
The W series covers the 4x4 side, a W150 or W250 is the four wheel drive twin of a D truck. A 4x4 rides on front leaf springs instead of coils, which changes the lift plan.
Source: Wikipedia Dodge D Series

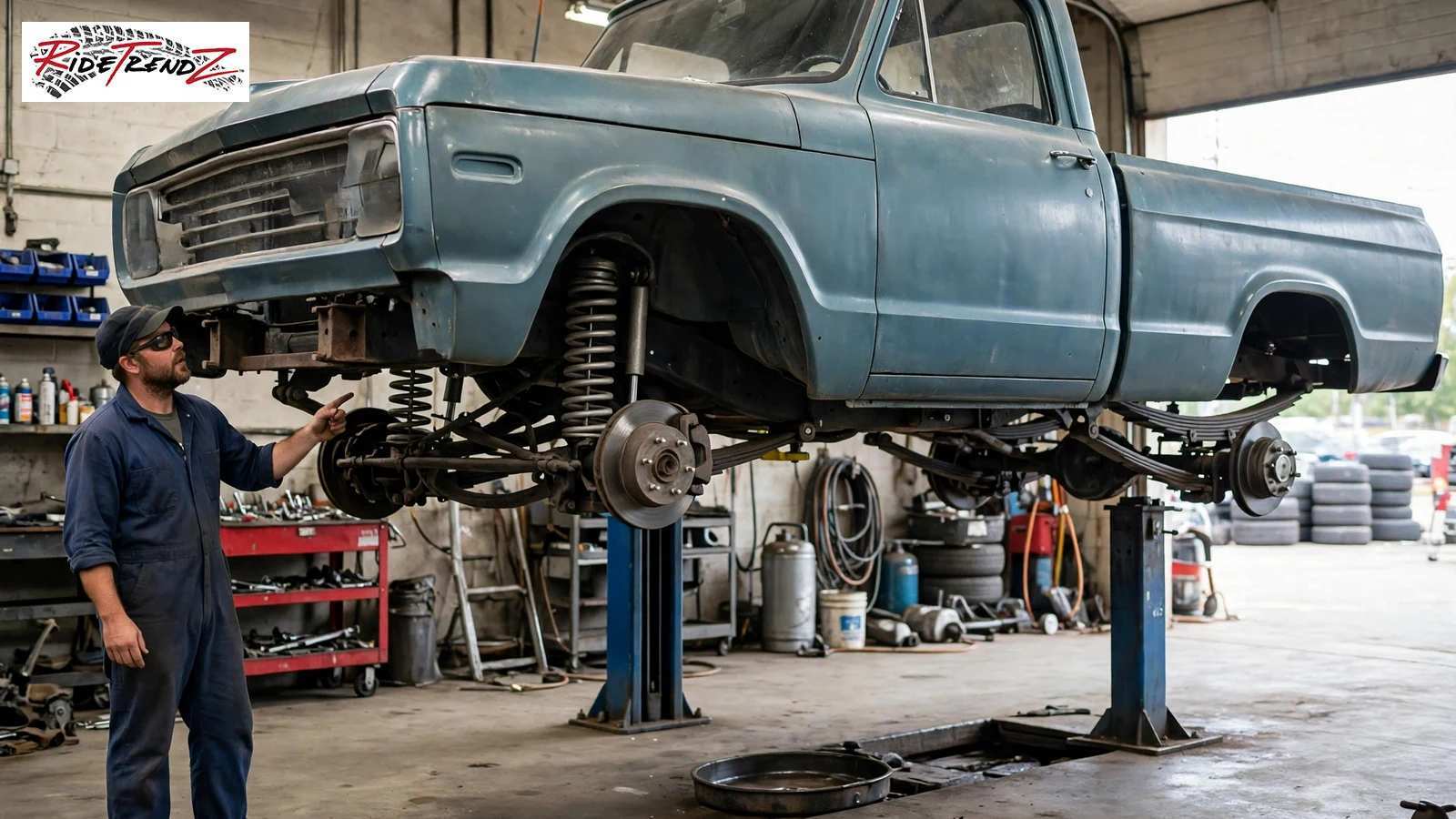

How a Lift Works on These Classic Trucks?
A Dodge D100 lift kit does not change how your suspension works. It changes where the body sits on the same springs and links. Spacers add height at the spring seat, blocks add height at the rear spring pack, and longer shocks restore travel.
The guide to suspension lift types and benefits adds the wider picture for first-time lifters.
Source: Wikipedia Car Suspension
Coil Springs and Spacers at the Front
A coil spring carries the front weight of a two wheel drive D series truck. A spacer sits at the spring seat and pushes the frame higher on the same spring.
A quality spacer uses strong material and a positive seat, so the spring cannot walk under load. Cheap spacers crack fast.
Source: Wikipedia Coil Spring
Leaf Springs, Blocks and Shackles at the Rear
A leaf spring pack carries the rear of every D series truck. A steel block between the pack and the perch adds height in minutes, and longer U bolts clamp the stack safely.
A small shackle change can level a truck that sits slightly low at the back. Blocks keep the factory spring rate, so Ridetrendz techs reach for them first.
Source: Wikipedia Leaf Spring
Shocks and Travel After the Lift
A lift stretches the stock shock past its happy range, so a topped-out shock rides harsh and wears fast. Matched longer shocks restore the travel the lift took away.
The featured kit bundles matched gas charged shocks for this reason, and they settle the big rear springs quickly on rough roads.
Source, Wikipedia Shock Absorber
Two Wheel Drive Coil Lifts Versus Four Wheel Drive Leaf Lifts
The dodge d100 lift kit path splits cleanly by drivetrain. Two-wheel drive trucks use front coils, and Four Wheel Drive trucks use front leaves. The front end design decides the parts list, the install time, and the alignment plan.
Our Dakota lift guide on torsion keys and coil spacers shows the same split on a smaller Dodge.
Source, Wikipedia Leaf Spring
Two Wheel Drive Coil and Spacer Layout
The two wheel drive front end carries each wheel on upper and lower arms with a coil spring between them. The spacer sits on the spring seat and raises the frame on the same spring, so the arms swing through a slightly steeper arc.
Owners see close to the rated spacer height at the fender, and the steering stays near stock because the geometry barely changes at mild heights.
Sourc:, Wikipedia Control Arm
Four Wheel Drive Leaf Spring Layout
The four wheel drive trucks carry a live beam front setup on leaf springs. Longer springs or taller blocks raise this front suspension. Lift height also changes the drag link angle.
Keep four wheel drive lifts modest on these classics. A mild lift on fresh bushings drives better than a tall lift on worn parts.
Source, Wikipedia Leaf Spring
Side by Side Comparison for Both Drivetrains
The table below puts both layouts side by side, so you can match your truck to the right column before you order. Spring type decides the method, the method decides the parts list, and the wrong column wastes money on parts that cannot fit your front end.
|
Area |
Two Wheel Drive D Series |
Four Wheel Drive W Series |
|
Front spring |
Coil spring |
Leaf spring |
|
Main lift method |
Coil spring spacers |
Longer springs or blocks |
|
Typical gain |
About 2 to 3 inches |
About 2 inches |
|
Alignment need |
Full alignment after install |
Toe check and drag link check |
|
Biggest watch item |
Spring seat security |
Steering angle at full lock |
Most buying mistakes come from ordering across this split, so read only your column.
Source, Wikipedia Car Suspension

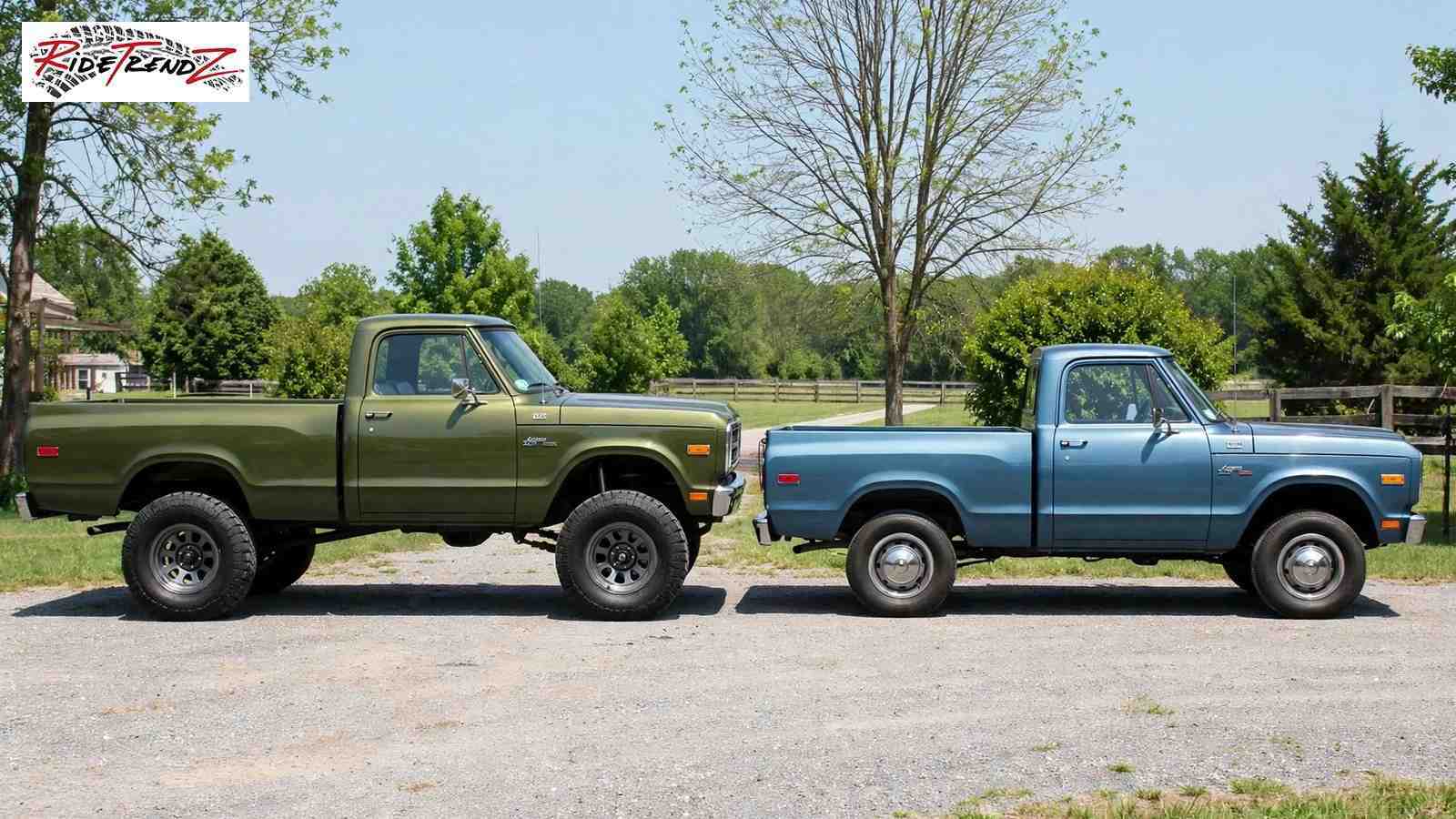

Choosing the Right Kit Height for Your Truck
Height is the most personal choice in any Dodge D100 lift kit build. Taller is not always better on a classic, because every extra inch asks more of the arms, the shocks and the alignment. This section walks the heights in order, and our parts versus complete kit guide helps you price each path.
Source, Wikipedia Car Suspension
Mild Leveling Gains Around 2 Inches
A mild level removes the factory nose down rake, and age makes that rake worse on most D series trucks. A small spacer set closes the gap and sharpens the stance.
The stock shocks often survive a small level, the alignment stays quick, and many owners start here and step up later.
Source, Wikipedia Car Suspension
Full Kits With 3 Inch Front Spacers
A full kit pairs 3 inch front coil spacers with blocks and matched shocks. The Ridetrendz kit uses steel tapered 2-inch rear blocks and DT9000 nitro shocks. A sister version swaps in a 3 inch rear block for trucks still sitting low at the back.
This is the dodge d100 lift kit spec restomod builders choose. It clears tires, keeps road manners calm and arrives as one box.
Source, Ridetrendz Full Lift Kit
Tire Sizes That Fit Each Height
Tire choice follows height, and the table below shows the sizes owners reach for at each step. Measure your fender room at full lock before you buy, because a wide tire on the wrong offset rubs long before a tall narrow one does.
|
Height choice |
Tire size owners often run |
Notes |
|
Stock height |
235/75R15 class tire |
Factory fitment on many half-ton models |
|
Mild level near 2 inches |
31-inch tire |
Watch front fender clearance at full lock |
|
Full kit near 3 inches |
32 to 33 inch tire |
Backspacing decides rub as much as height |
Treat the table as a starting map, not a promise, because wheel width and backspacing move the tire as much as height does.
Source: Wikipedia Car Suspension
Pros and Cons of Lifting a Classic Dodge
A lift changes more than the stance of a classic truck, and the trade offs deserve a clear look before you order. The gains are real: ground clearance, tire room, and fresh parts where the old ones sagged. The costs are real too, alignment time, tired hardware fights and a slightly firmer ride. Weigh both lists against how your truck actually works each week.
Pros
- Better ground clearance for rough driveways, fields and trails
- Room for taller tires with a stronger stance
- Fresh parts replace sagging and worn factory pieces
- A level truck tows and hauls with a calmer feel
Cons
- The alignment needs a reset after the install
- Old hardware can turn a simple job into a long weekend
- Taller tires can dull acceleration on stock gearing
- The ride firms up a little on spacer lifts
Source, Wikipedia Car Suspension

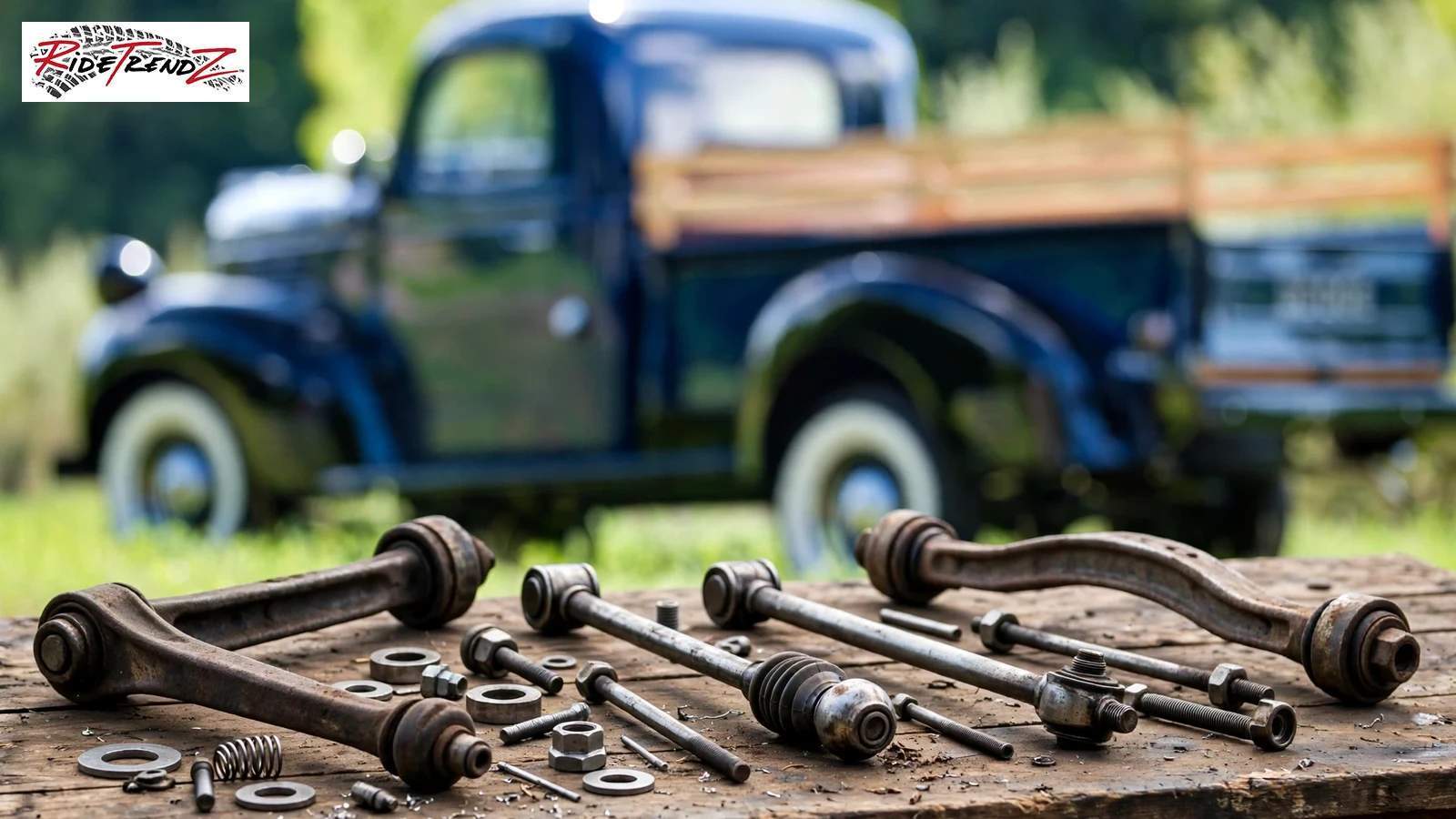

Steering and Suspension Parts That Decide Ride and Safety
ADodge D1000 lift kit only rides as well as the parts it works with. Worn joints, tired bushings, and bent parts all hide under a stock height truck, and a lift loads every one of them harder from the first drive. Our truck suspension basics guide gives the full glossary for every part named below.
Source, Wikipedia Double Wishbone Suspension
Control Arms and Ball Joint Angles
Control arms locate each wheel and set its travel arc. A lift pushes the arms into a steeper rest angle than stock. Fresh bushings help healthy arms shrug off that change on a mild lift.
The ball joint carries the knuckle, and a spacer lift asks it to work nearer the edge of its travel. Grease it, check for play, and replace a loose joint before the lift.
Source, Wikipedia Ball Joint
Spindle, Tie Rod and Brake Caliper Checks
The spindle carries the hub and brake rotor. A bent spindle ruins alignment numbers. Spin the hub, listen for rough bearings.
The tie rod links the steering box to the knuckle. A worn end wanders, and a lift makes it easier to feel. Check boots for torn rubber.
The brake caliper floats on its bracket. A sticky caliper drags a wheel and pulls under braking. Service it during the lift.
Sourc:, Wikipedia Brake Caliper
Strut Rod and Bushing Wear on Old Trucks
A strut rod braces the lower arm against braking forces. Its bushings crack with age and oil exposure, and cracked bushings let the wheel shift under braking, so the truck feels nervous at speed.
Fresh bushings tighten a classic truck more than any single mod, so budget for them with the lift.
Source: Wikipedia Control Arm
Rear Axle, Blocks and Add a Leaf Options
The rear of a dodge d100 lift kit build looks simple, and the details decide how it tows and rides. Blocks, add a leaf kits and shackles all raise the rear, and each suits a different job. Our lift shocks and stock shocks comparison explains why rear shock length matters as much as rear height.
Source: Wikipedia Leaf Spring
Tapered Blocks and Pinion Angle
A tapered block tilts the spring perch a few degrees and points the pinion back toward the transmission line. The result is a calmer driveshaft and less vibration at highway speed.
Flat blocks suit tiny height changes, and tapered blocks suit the 2 and 3 inch kits in this guide. The featured Ridetrendz kit uses tapered steel blocks for this reason, and the rear axle thanks you with quieter cruising.
Source, Wikipedia Leaf Spring
Add a Leaf and Helper Spring Choices
An add a leaf slides one more leaf into the rear pack. It raises the truck a little, adds load capacity, and firms the ride, because the pack rate rises with the extra steel.
Helper springs suit trucks that only squat under load. They stay quiet with an empty bed and wake up under load.
Source, Wikipedia Leaf Spring
U Bolt and Wrap Control Checks
U bolts clamp the spring pack to the rear axle housing. Old U bolts stretch and rust, and a stretched bolt lets the pack shift under power, which feels like a clunk on takeoff and can grow into a broken center bolt.
Fit fresh U bolts with every block install. Torque them in a cross pattern, drive a short loop, and torque them again.
Source, Wikipedia Leaf Spring
Step by Step Install on a Classic Truck
A home install of a dodge d100 lift kit takes a free day for most owners, and the truck age adds the surprises. Work one corner at a time, keep the factory parts until the truck drives straight, and use the matched full kit page as your parts checklist. Keep a notebook beside you for torque values and bolt order.
Source, Wikipedia Car Suspension
Tools, Prep and Rusty Hardware Warnings
Gather a floor jack, tall stands, a spring compressor, penetrating oil and a torque wrench, and spray every bolt the night before. Rust welds old hardware in place, and a snapped shackle bolt can end the day early.
Support the frame, never the springs alone, and wear eye protection around rusty parts.
Source, Wikipedia Car Suspension
Front Spacer and Rear Block Install Steps
Unbolt the front shock and sway bar link, then lower the arm carefully. Compress the coil, seat the spacer, and rebuild the corner. The perch bracket and shock bracket need full thread engagement before torque.
Support the housing, remove the U bolts and slide the block home, tapered end facing the right way. Fit fresh U bolts in a cross pattern, and set the truck down before final torque.
Source, Wikipedia Coil Spring
Torque, Test Drive and Alignment
Torque every fastener to the kit sheet values with the truck at ride height. A short test drive settles the springs and shows up loose parts as sounds.
Book the alignment the same week, because fresh heights change camber and toe, and tires pay for delay. A shop with classic truck experience is worth the short drive.
Source, Wikipedia Wheel Alignment

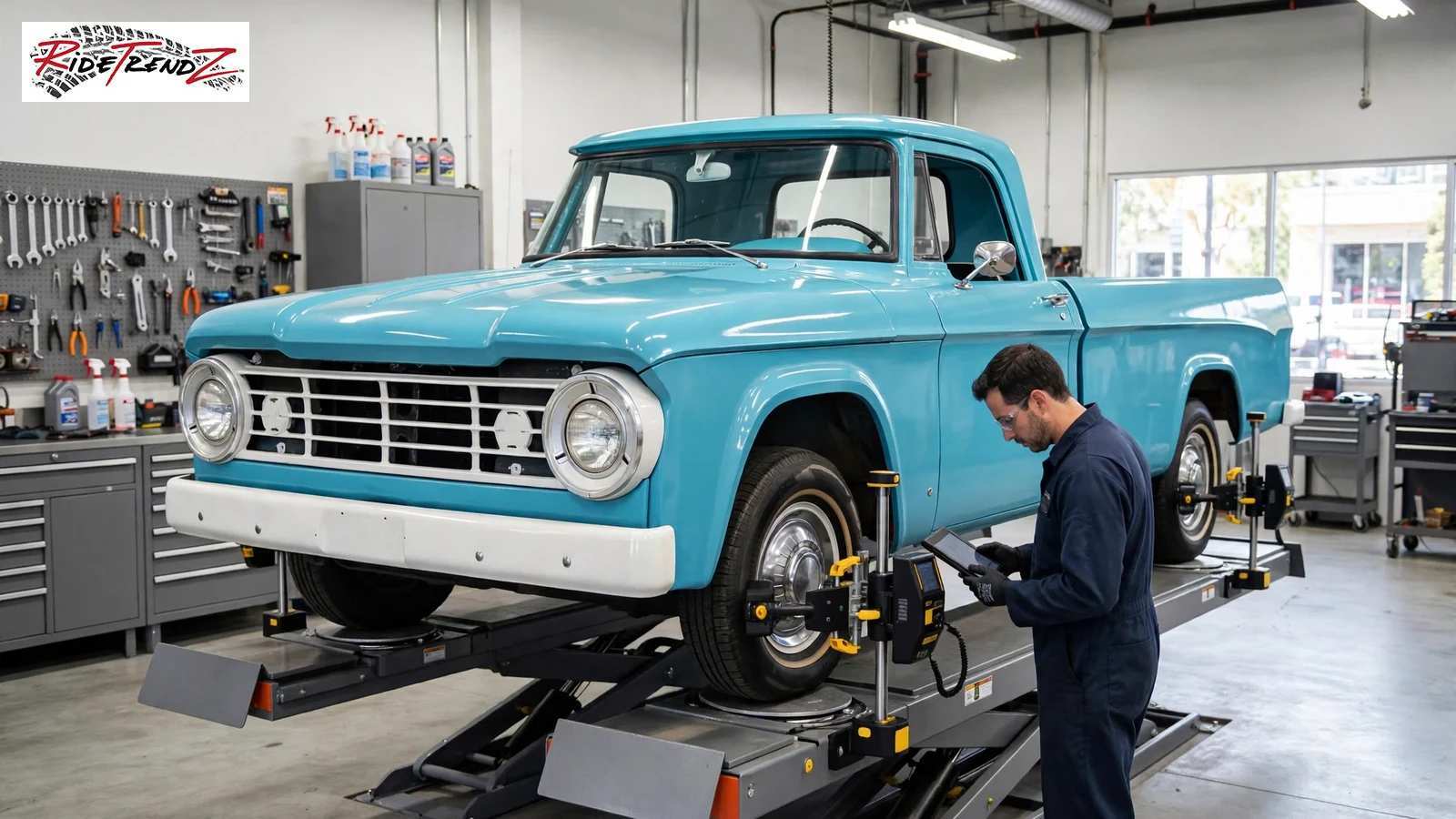

Ride Quality, Alignment and Troubleshooting
A finished dodge d100 lift kit should drive calm and straight. Most first week issues trace back to worn parts, missed torque or a skipped alignment. The fixes below start with the cheapest checks first, because most post lift complaints come from one missed step rather than a bad kit. Our guide on how long lift kits last covers the upkeep that keeps a lift feeling new.
Source: Wikipedia Wheel Alignment
Camber and Caster Changes After a Spacer Lift
A spacer lift rolls the top of the tire outward as the arm angle changes, which shows up as positive camber on the alignment rack. Shims and arm adjustment bring the numbers back on most of these trucks.
Caster changes stay small on a mild lift. A truck that wanders at speed wants more caster attention.
Source: Wikipedia Wheel Alignment
Vibration, Wander and Pull Fixes
A new vibration at highway speed often points at pinion angle. Check the rear block taper direction first, because a reversed taper makes the angle worse.
Wander points at loose steering parts or low caster. Pull under braking points at the brakes, not the lift. Work through them in that order and one culprit usually shows itself fast.
Source, Wikipedia Ball Joint
Sagging Springs and the Nose Low Look
Old coil springs lose free height over decades. A spacer on a sagged spring gives less lift than the number on the box. Measure both sides before you order, because one side often sags more.
A leaning truck usually wears one tired spring, so replace springs in pairs when sag passes a small margin.
Source: Wikipedia Coil Spring
Cost Factors and Common Mistakes
The sticker price of a dodge d100 lift kit is only part of the bill. Hardware, alignment and the odd rusted part all join the total. Owners who price the whole job first never face the mid-install parts run, and the truck leaves the garage finished instead of waiting on a second delivery. Our truck lift cost guide breaks the wider market down.
Source, Wikipedia Car Suspension
Parts Only Versus Complete Kit Budgets
A parts-only path looks cheap at first. Spacers alone skip the shocks, the hardware and the matched rear parts, and the second order for the missing pieces often costs more than the kit did.
A complete kit lands in one box with matched parts, so the budget stays predictable and the install stays a one day job.
Source, Ridetrendz Lift Parts Versus Complete Kit Guide
Rust Belt Labor and Hardware Surprises
Rust belt trucks eat labor hours, because seized shackle bolts, rounded U bolt nuts and scale on every perch slow the work. Heat and patience free more bolts than force does.
Home builders should budget a hardware cushion, because fresh bolts, U bolts and bushings cost little besides a stalled weekend. Order them with the kit.
Source, Wikipedia Car Suspension
Mistakes That Waste Money
The biggest mistake is ordering for the wrong badge or drivetrain. The second is stacking a spacer on a dead spring and blaming the kit for the lean. Moparts forums veterans warn about both in thread after thread.
Skipping the alignment ranks third, and a lifted truck on old numbers eats front tires fast.
Sourc:, Wikipedia Car Suspension
Why Owners Trust Ridetrendz for Classic Dodge Parts?
Ridetrendz treats classic truck parts as a specialty, not a side shelf. The catalog keeps deep coverage for trucks the big stores forgot. Owners cross shopping a modern Dodge Ram 1500 build get the same care as owners of the oldest D series in the yard. That range is why a dodge d100 lift kit order lands here so often.
Source, Ridetrendz USA Made Suspension Parts Guide
Fitment Help From Real Truck People
Send your year, badge, and drivetrain before you order, and the team checks spring type and perch style against the kit. Thattwo-minutee check prevents the wrong box landing on your doorstep.
The blog guides stay free for every owner, so read them at midnight in the garage and bring the questions in the morning.
Source, Ridetrendz Truck Suspension Basics
The Featured Full Kit for 1972 to 1993 Trucks
The featured Dodge D100 lift kit pairs 3-inch front coil spring spacers with steel tapered 2-inch rear blocks and DT9000 nitro shocks. It fits the two wheel drive trucks in this guide, D100 through D250 badges included, and the matched parts make ride height and shock travel agree from day one.
Check the full kit on the Ridetrendz store for your exact year before you order.
Source, Ridetrendz Full Lift Kit
Final Takeaways Before You Order
A dodge d100 lift kit rewards the owner who identifies the truck first, picks the height second and budgets the whole job third. Confirm your badge, drivetrain, and spring type, choose matching spacers and blocks, add fresh hardware, and book the alignment before the parts land.
Shoppers who arrive from a newer Dodge Ram 1500 guide or a 2500 build thread often find the classic path simpler than they feared. Ridetrendz keeps the kits, the guide,s and the fitment help in one place, so your classic can sit tall with confidence.
Source, Wikipedia Dodge D Series
Frequently Asked Questions
How much lift can a stock D150 suspension handle without new arms
A stock half ton suspension handles a mild spacer lift of about 2 to 3 inches well, because the arms and joints stay in a safe working range. Taller setups need arm changes and careful geometry work. Measure your current rake first, because a sagged spring eats part of that range before the spacer goes on.
Sour:e, Wikipedia Car Suspension
Do I need an alignment after lifting a classic Dodge truck
Yes, an alignment is part of the job, not an extra. New ride height changes camber and toe, and a prompt alignment protects tire life and keeps the steering calm. Book the alignment for the same week as the install, and keep the printout for your records.
Source: Wikipedia Wheel Alignment
Can a D200 use the same lift parts as a half ton truck
Some parts cross over, and some do not. The heavier truck runs thicker springs and bigger hardware, so spring width and bolt sizes need a check first. Moparts forums threads flag this mismatch often. The same badge first check applies to a D300.
Source, Wikipedia Dodge D Series
My truck leans after the spacer install, what did I miss
A lean usually means one spring sagged more than the other, or a spacer missed its seat. Measure both fender heights, inspect each spring seat, and replace a tired spring in a matched pair. A tired spring replaced alone leaves the lean half fixed, so pairs matter on these trucks.
Source: Wikipedia Coil Spring
Is lifting a rusty farm truck on original springs a bad idea
It can be, because tired springs and rusted hardware fight the whole job. Refresh the springs and bolts first, and the kit will sit and drive as designed on the sound base truck. A wire brush, fresh bolts, and sound springs turn a fight into a routine Saturday job.
Sourc:, Wikipedia Leaf Spring
Does Ridetrendz sell a full kit for my classic truck
Yes, Ridetrendz stocks a dodge d100 lift kit built for the 1972 to 1993 two wheel drive trucks. The kit pairs front coil spacers with tapered rear blocks and matched shocks in one box. One box means one fitment check and no second order for missing hardware later.
Source, Ridetrendz Full Lift Kit
Can Ridetrendz help me choose between the 2-inch and 3-inch rear block
Yes, the team picks rear block height from your current rear ride height and load plans. Trucks that sit level after the front lift take the 2-inch block, and trucks that still squat take the 3-inch rear block version for a level finish.
Source, Ridetrendz Full Lift Kit With 3 Inch Rear Block
Source, Wikipedia Car Suspension
