Chevy Express & GMC Savanna Van Lift Kit Guide (1996–2025)

A Chevy Express lift kit raises the front and rear of a 1996-2025 Express or Savanna so the van clears bigger tires and rough ground with ease. The right Chevy Express lift kit matches your series, your drivetrain, and your load, and it keeps the ride calm on the highway.

The Express and Savanna replaced the long-running G-Series vans in 1996, and they kept the same work-ready formula. You get a body-on-frame build, a simple front suspension, and a leaf spring rear. That simple hardware makes the Chevy Express GMC Savannah pair the easiest full-size vans in America to lift well.

Guides that promise perfect lift kits for every van skip the fitment step, and that step decides everything. This guide walks through the full range of Chevy Express van lift kits in plain order.

Quick Summary

• A Chevy Express lift kit in the 2 to 3 inch range suits most Express and Savanna builds.
• Coil spring spacers lift the front on 2WD vans, and rear blocks level the back.
• AWD 1500 vans from 2003 to 2014 use torsion bars at the front instead of coils.
• Bigger tires need clearance checks at full lock, or the tire will mark the liner.
• A wheel alignment after the install protects your tires and your steering feel.

Which Chevy Express Lift Kit Part Fits Your Van, 1500, 2500 or 3500?

The first job is a correct part match, and the second job is everything else. Ridetrendz sorts every kit by year, series, and drivetrain, so the part you open matches the van on your lift. Our guide on when to buy suspension parts or a complete lift kit explains the same logic for truck owners.

Source: Wikipedia, Chevrolet Express

1996 to 2002 GMT600 Vans and the First Generation Frame

General Motors launched the Express on the GMT600 frame in 1996, and the new frame freed up the cabin. These early vans run coil springs at the front in 2WD form, and they answer well to a spacer-based Chevy Express lift kit. Cross shoppers compare the Ford E150 van here, and the GM vans win on parts supply. Silverado 4WD threads often cover the same front end parts.

Source: Wikipedia, Chevrolet Express

2003 to 2025 GMT610 Vans and the Facelift Frame

The GMT610 update arrived for 2003 with a stronger boxed frame and revised front bodywork. All Wheel Drive vans switched to torsion bar front springs, and that split decides your kit type. The AWD option ran from 2003 to 2014 on the 1500 and light-duty 2500 models. If your van falls in the 2003-2018 Chevy Express 1500 2500 window, check the drivetrain badge before you order anything.

Source: Wikipedia, Body-on-frame

Express 1500, 2500 and 3500, Matching the Kit to the Load Rating

The Chevy Express 1500, 2500, and 3500 range splits by payload, and springs stiffen as the numbers climb. The half-ton 1500 rides soft and suits passenger duty. The full lift kit for 1996-2025 Express and Savanna 2WD vans pairs 2.5-inch front coil spring spacers with a steel tapered 2-inch rear block kit. Pick your Chevy Express lift kit by the door badge, and the stance lands right.

Source: Wikipedia, Chevrolet Express

Lift Kit vs Leveling Kit for a Van, Which One Solves Your Problem

Owners mix up lift and leveling more than any other topic in van suspension. Ridetrendz explains the same split in the lift kit vs leveling kit guide, and the van answer follows the same rules. The short version is simple: a leveling kit fixes stance, and a lift kit changes capability. Pick by the job your van does each week, and the right kit name follows from that job.

Source: Wikipedia, Ride Height

What Does a Leveling Kit Change at the Front of the Van?

Most Express and Savanna vans leave the factory with a nose-down rake, a visible front drop. A leveling kit adds front height only, and the van sits flat. The job uses the same spacers as a full kit, just without rear parts. Shoppers hunting perfect lift kits for a daily driver often need leveling instead.

Source: Wikipedia, Coil Spring

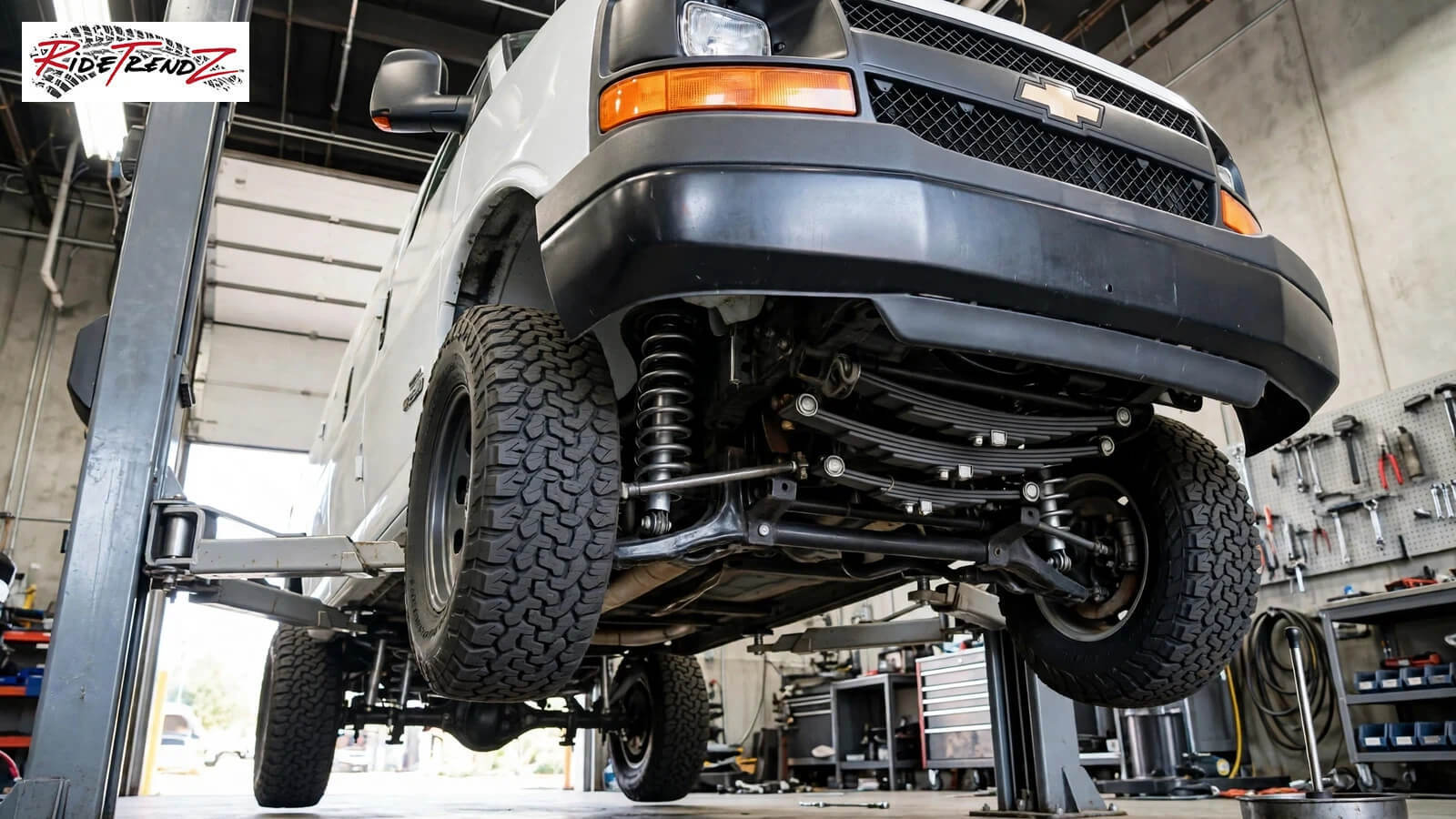

What Does a Full Lift Change at the Front and the Rear?

A full lift raises the body and frame away from the axles at both ends. The 22-inchfront and rear full lift kit for Express and Savanna vans suits owners who want a mild and balanced gain. A mild Chevy Express lift kit also keeps the factory ride character intact.

Source: Wikipedia, Ride Height

Lift and Leveling Options Side by Side for Van Owners

The table below sums up the choice in one view. A leveling kit costs less and installs faster, and it suits a van that only needs a flat stance and a mild tire step. A full lift adds rear height and real clearance, and it suits vans that camp, tow, or work off pavement each week.

Source, Wikipedia, Chevrolet Express

Front Lift Methods, Coil Spacers, Spindles and Springs Compared

Every front kit for a 4x2 Express or Savanna works on the coil spring front end. Our explainer on how a truck suspension lift kit works covers the same physics in simple terms. Three routes reach the extra height: spacers, spindles, and taller springs, and each route treats ride feel and alignment in a different way.

Source, Wikipedia, Coil Spring

Coil Spring Spacers and How They Add Front Height

A coil spring spacer sits above or below the front coil and pushes the control arm down. Owners call these parts coil spacers in most listings, and the name fits the job. A front van lift kit built on spacers also installs fast, because the spring itself never leaves the van.

Source: Wikipedia, Coil Spring

Lift Spindles and Steering Geometry on 2WD Vans

A lift spindle moves the wheel hub down on a taller steering knuckle. The 3-inch front lift kit with 2-inch rear blocks for 2WD vans shows the spacer alternative at the same height. Either way, a front van lift kit needs an alignment check right after the install.

Source: Wikipedia, Control Arm

When a Taller Spring Beats a Spacer on an Express Van

Old springs sag below their original height, and a spacer on a sagging spring only hides the problem. A fresh taller spring restores rate and height in one part.

A spacer-based front van lift kit wins for most owners, and coil spacers keep the original springs in place. The spacer still wins on cost, and the spring wins on freshness.

Source, Wikipedia, Coil Spring

Rear Lift, Blocks, Leaf Springs and Helper Support

The rear of every GMC Savanna van and Express rides on a leaf spring pack over a solid axle. The full lift kit with DT9000 Nitro shocks for Express and Savana vans shows the complete front and rear package in one box. Each rear route answers a different need: simple height, load support, or adjustable support, and the sections below split them in that order.

Source, Wikipedia, Leaf Spring

Steel Tapered Blocks Under the Leaf Pack

A lift block sits between the axle and the leaf pack, and longer U-bolts clamp the stack together. The tapered shape keeps the pinion angle close to stock, so the driveshaft runs smooth. The shortlist kit uses a steel tapered 2-inch block. Owners feel the gain as an easier step-in and better departure clearance on steep driveways, and the factory springs keep their stock ride the whole time.

Source: Wikipedia, Leaf Spring

Helper Springs for Camper and Cargo Weight

A lifted van that hauls weight needs rear support, and helper springs add rate only when the load presses down. A line like the SSF-204-54 SuperSprings set of 2 helper springs front for Savana GMC 2500 pair shows how exact the fitment language gets. They work while the van sits still and while it rolls, and they ask for no air lines, no compressor, and no driver input.

Source: Wikipedia, Leaf Spring

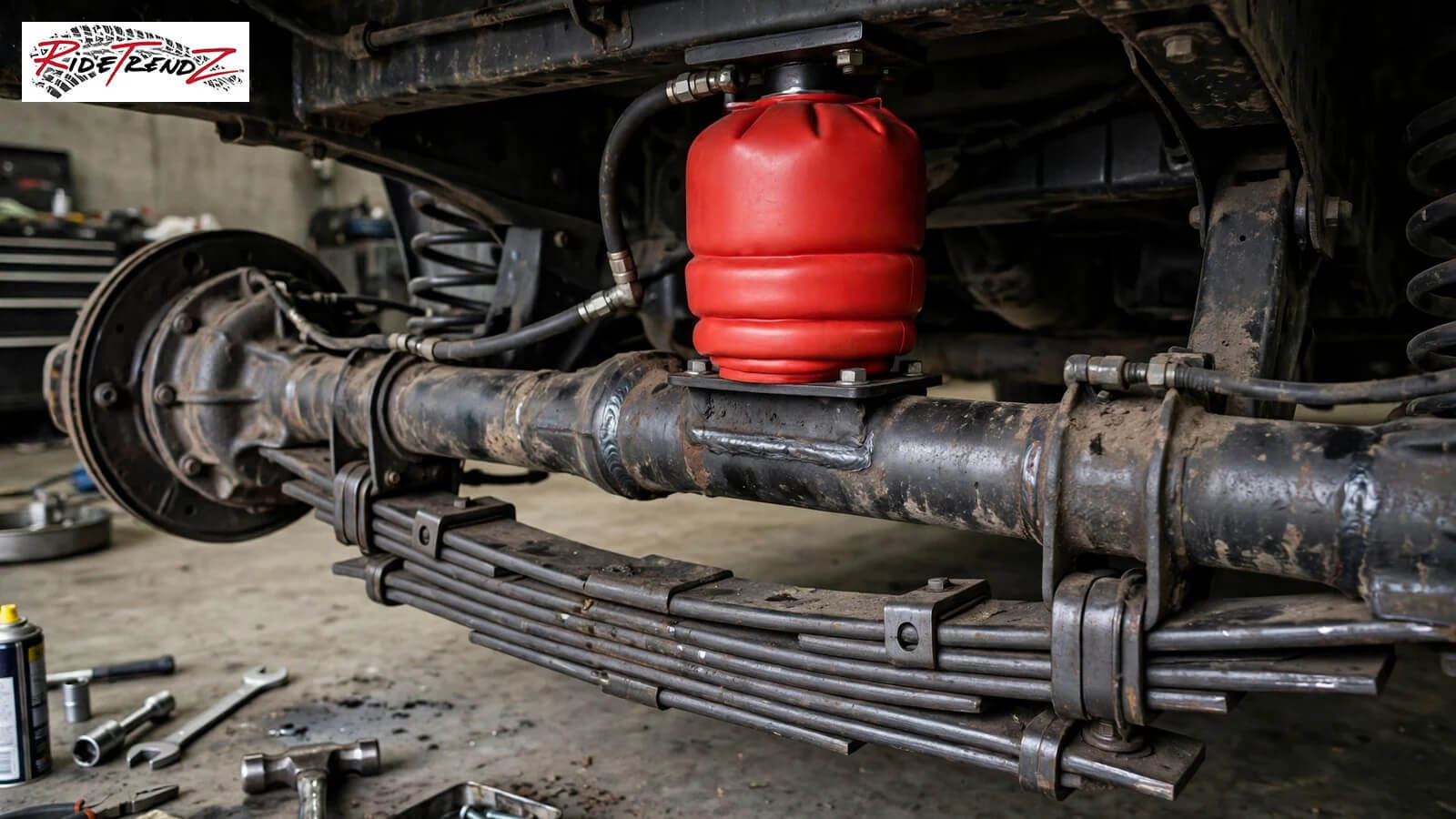

Air Helper Bags and Load Support at the Rear

An air bag setup adds adjustable support, and the driver sets pressure for the load of the day. They suit vans that tow one week and run empty the next. Owners cross-shop a Hellwig set of 2 helper spring kits here for price, and the right answer depends on duty cycle. A Chevy Express lift kit with the right rear support rides level in both cases.

Source: Wikipedia, Air Suspension

AWD Vans and the Torsion Key, Why Forge Quality Decides the Lift

AWD Express and Savana 1500 vans use torsion bars at the front, and the 4x2 vans use coils. If you research a kit for Chevy Express AWD vans, start with the key, because the key sets the height. The 3-inch full lift kit for 4WD Express and Savanna vans covers the four-wheel drive fitment in the range.

Source: Wikipedia, Torsion Bar Suspension

How a Torsion Bar Front End Works on the AWD 1500?

A torsion bar is a long steel rod that twists as the wheel moves. One end anchors to the frame, and the other end meets a lever called the torsion key. The Chevy Express van 1500 in AWD form rides on this setup from the factory. It also means a Chevy Express van 1500 lift works through the key, and not through a spacer.

Source: Wikipedia, Torsion Bar Suspension

Cranking the Stock Keys vs Fitting Lift Keys

Cranking the stock key bolts buys a small gain, and the ride suffers fast. A reindexed lift key reaches the same height with less preload. Forge quality matters here, because a weak casting can crack under bar tension. The 2003-2018 Chevy Express 1500 2500 AWD vans reward a proper key. A Chevy Express lift kit for an AWD van should always name the key in the parts list.

Source: Wikipedia, Torsion Bar Suspension

Ride Quality Limits on the AWD Express and Savanna

Torsion bars give a firm and controlled ride, and they punish worn shocks quickly. Keep the AWD lift in the mild range, and the Chevy Express van 1500 keeps its composure on broken pavement. Silverado 4WD owners report the same limit on their trucks. Owners of Express 1500 2500 3500 4WD vans should check the forge stamp on any replacement key.

Source, Wikipedia, Shock Absorber

Tire Size, Clearance and Rubbing After the Lift, Plus Fit Checks

A lift earns its keep when the tires grow, and tire growth needs homework. Our explainer on lifting and gas mileage covers the fuel side of bigger tires, and the basics guide on truck suspension for beginners covers the hardware side. Start with the tire you want to run, then work back to the height that clears it.

Source: Wikipedia, Tire Code

Reading the Tire Code Before You Upsize

Load index matters most on vans, because a one-ton 3500 can carry serious weight. Match the load rating to the door placard, and never trade rating for looks. The code on the sidewall also gives the tire width, the sidewall ratio, and the wheel diameter, and those three numbers decide the height gain. Read them before you order, and compare them with the size fitted today.

Source, Wikipedia, Tire Code

Where Rubbing Starts and How Owners Catch It Early

Rubbing usually starts at the front bumper valance or the rear edge of the front wheelhouse. Chevy enthusiasts forums log the same rub points again and again, and one Chevrolet forum thread after another names the valance first. Owners also log searches like van Suburban lift and E150 tire fitment while they compare notes. A Chevy Express lift kit with the right tire choice clears through the whole sweep.

Source: NHTSA, Tire Safety

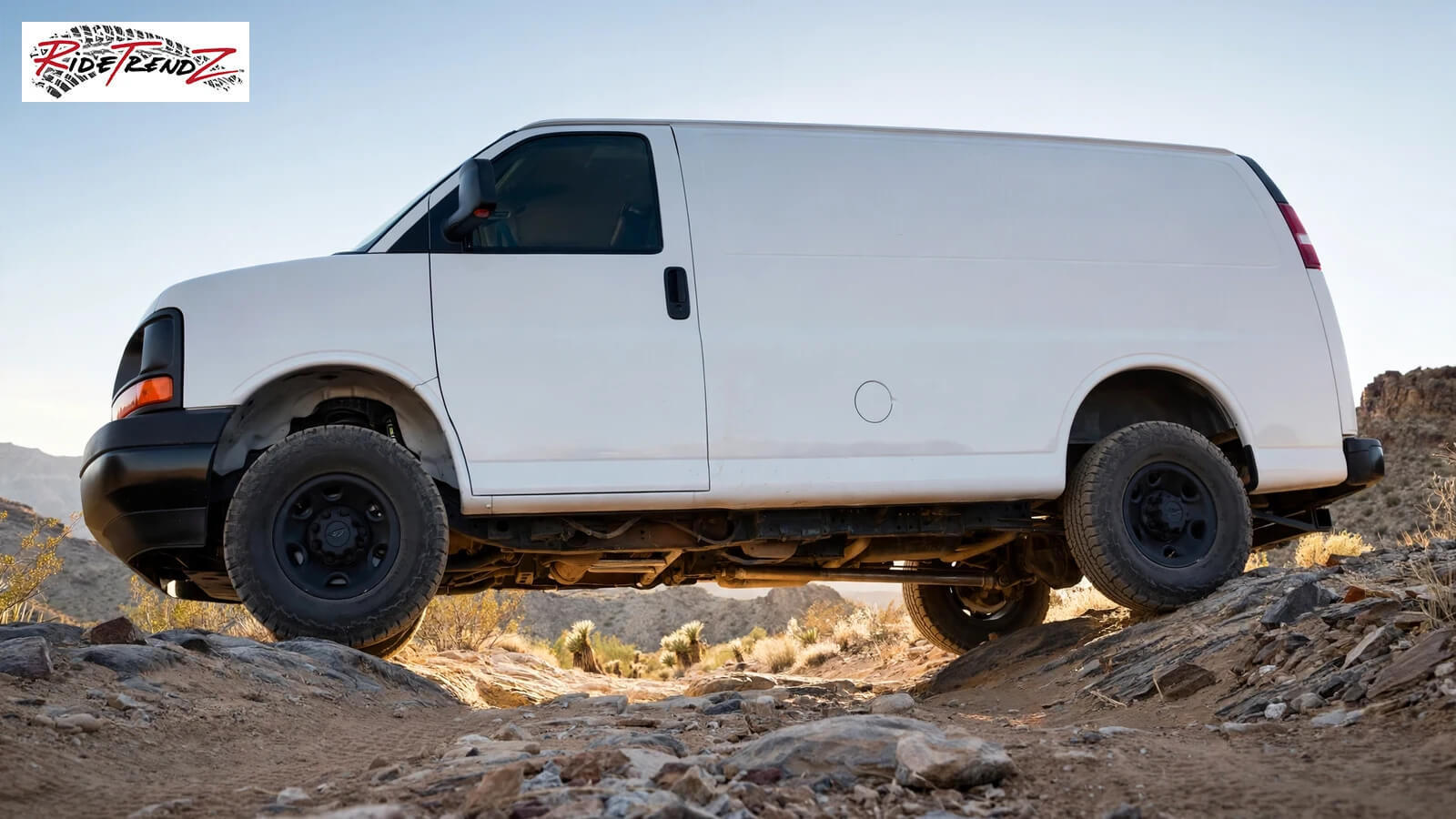

Ground Clearance Gains That Actually Matter on a Van

A mild lift plus one tire size often beats a tall lift on stock tires, and the drop in fuel economy stays small. Your Chevy Express lift kit plan should name the tire size first and the height second. That order keeps the build honest. Measure at the lowest hard point, usually the front crossmember or the rear shock mounts, and write the number down before the install.

Source: Wikipedia, Ride Height

Alignment, Ride Quality and Steering Feel After Lifting

A lift changes suspension geometry, and geometry decides tire life. Our guide on lift shocks vs stock shocks explains the damping half of the ride story. Silverado 4WD owners chase the same post-lift feel on the truck side. Book the alignment for the same week as the install, and drive gently until the angles are set.

Source: Wikipedia, Wheel Alignment

Camber, Caster and Toe, the Three Angles That Change

Camber is the inward or outward tilt of the wheel. Caster is the forward or rearward tilt of the steering axis. A lift usually adds positive camber, cuts caster, and speeds up shoulder wear. Toe is the angle the tires point toward or away from each other, and a small toe error scrubs rubber faster than any other setting on the sheet.

Source, Wikipedia, Camber Angle

Upper Control Arms and Ball Joint Angles at Full Droop

At full droop, the upper control arms swing down, and the joint angles grow steep. The upper ball joint carries the angle limit on this design, so inspect it during the install. Fresh upper control arms restore tight geometry on high mileage vans. A Chevy Express lift kit in the mild range respects these limits by design.

Source: Wikipedia, Control Arm

Shocks and Damping, Stock Length vs Matched Length

A shock absorber damps spring movement, and a lifted van needs travel that matches the new height. The full lift kit with a set of Doetsch Tech DT9000 Nitro shocks pairs the spacers and blocks with matched damping. Short shocks top out early and pull on their mounts, and that pull is the clunk many owners chase after a budget install.

Source: Wikipedia, Shock Absorber

Install Steps, Difficulty and Shop Time

The work needs a floor jack, tall stands, spring compressors, and a torque wrench. The Ford van community documents a similar job in the E150, E250 and E350 van lift installation guide, and E150 van owners follow steps that mirror the GM layout. Most home installs land in one long day, and a second pair of hands makes the heavy steps calmer and safer.

Source, Wikipedia, Coil Spring

Front End Steps, Springs Out and Spacers In

Raise the van and support the frame on stands. Drop the lower control arm, unload the coil spring with care, and seat the spacer. A short install video from the kit maker helps first timers sequence the job. A Chevy Express lift kit rewards patience at this stage more than speed. Keep the spring compressor work slow on any front lift, because stored energy deserves respect.

Source: Wikipedia, Coil Spring

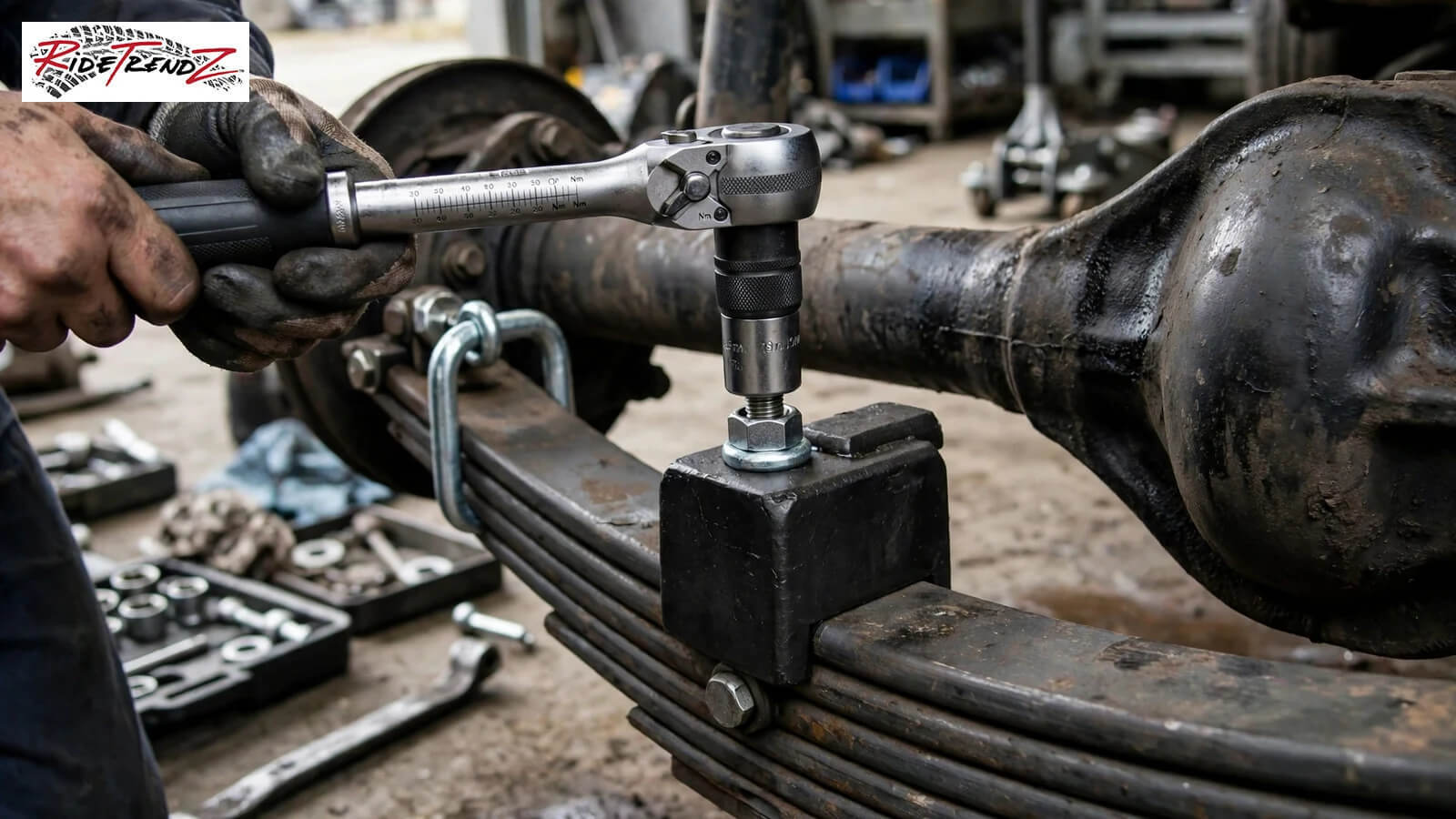

Rear Steps, Blocks, U-Bolts and Torque Checks

Support the axle, loosen the U-bolts and lower the axle away from the leaf pack. Seat the tapered block with the tall end facing the right way, then clamp the stack with new U-bolts. Our notes on lift parts vs. a complete lift kit explain why fresh U-bolts beat reused ones.

Source, Wikipedia, Leaf Spring

Pinion Angle and Driveshaft Vibration Checks

A rear lift changes the angle between the driveshaft and the pinion. Road test at highway speed and listen for a new hum or shake. A Chevy Express lift kit with the right taper runs quiet from day one. Most post-lift vibration traces back to a simple seating issue, and a short test video helps you compare the sound before and after.

Source: Wikipedia, Drive Shaft

Work Van, Passenger Van and Camper Builds, Cost Factors Included

Ridetrendz plans each Chevy Express lift kit around that duty first. Our price guide on how much it costs to lift a truck breaks down the same cost buckets for truck owners. A work van earns money by the mile, a passenger van earns trust by the trip, and a camper earns its keep on weekends far from home.

Source: Wikipedia, Van

Passenger Vans and Family Use After a Lift

A passenger GMC Savanna van gains easy entry clearance and a confident stance from a mild lift. Owners compare notes with van Suburban b,an and SUV drivers at this stage, because the use cases overlap. Families feel the change at the curb first, where taller tires and a level floor make loading kids, seats and luggage simpler every single daSource

Sou: Wikipedia, Van

Camper Conversions and Heavy Rear Loads

A camper conversion adds cabinets, water and gear, and the rear springs feel every pound. The line SSF-204-54 SuperSprings set of 2 helper springs front for Savana GMC 2500 pair appears because camper owners shop helpers more than anyone. Fitment words matter more than brand words. A Hellwig set of 2 helper spring options sits in the same search results, and Ridetrendz sorts the choice by your series and load.

Source, Wikipedia, Campervan

What Drives the Total Cost of the Job

Parts cost splits into the kit, the shocks, the tires, and the alignment. The Ford E150 van crowd pays the same buckets on the rival platform. A complete kit like the 2.5-inch front and 2-inch rear full lift kit for Express and SSavannacuts labor surprises, because every core part arrives in one box.

Source: Wikipedia, Chevrolet Express

Common Mistakes, Troubleshooting and the Ridetrendz Kit to Start With

Most lift problems trace back to fitment, worn parts,or  a skipped alignment. Chevy Express GMC Savanna owners post the same short list of issues in every community. Chevy enthusiasts forums collect these stories by the thousand, and a Chevrolet forum search shows the pattern in minutes. Read the list before you order, and yyour Chevy Expressvan lift kits shortlist gets much shorter and much safer.

Source: Wikipedia, Chevrolet Express

Mistakes That Cause Rake, Noise or Early Wear

The first mistake is a kit ordered by year alone, with no series check. The SSF-204-54 SuperSprings set of 2 helper springs front for Savanna GMC 2500 pair line belongs to the front of one van, and owners still order it for the rear. A Hellwig set of 2 helper spring listing can mislead the same way. Match the axle in the listing to the axle on your van.

Source, Wikipedia, Ball Joint

Troubleshooting Vibration, Pull and Uneven Stance

A pull after the install points at alignment or tire pressure. A hum at speed points at pinion angle or U-bolt torque. Work the list in that order, and most vans settle fast. A Chevy Express lift kit that starts true usually stays true. An uneven stance points at a seated block, or a tired spring on one corner, and a tape measure finds it fast.

Sourc:, Wikipedia, Wheel Alignment

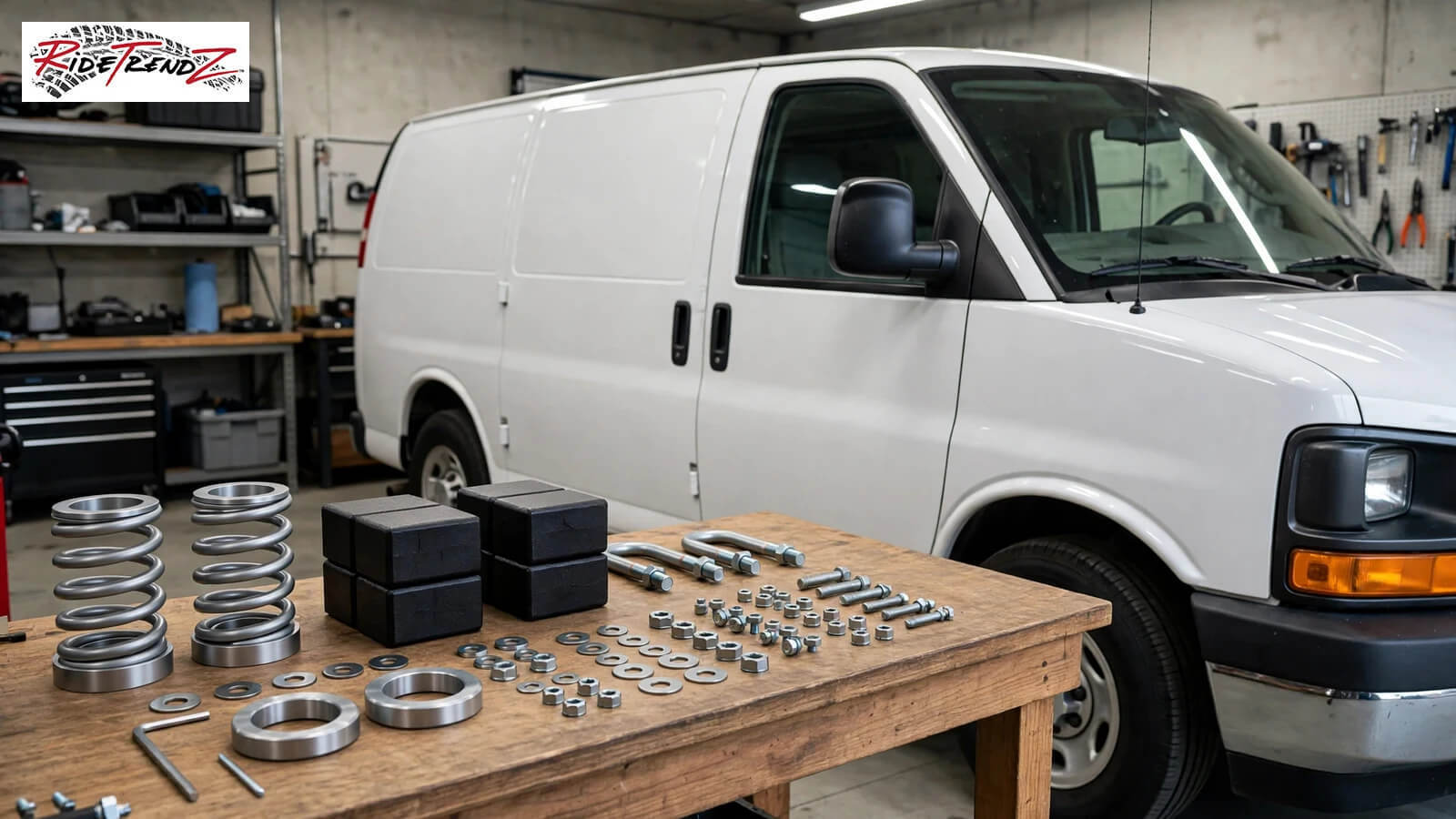

The Main RideTrendz Kit and How to Check Your Fitment

The main kit for Chevy Express and Savanna 2WD vans ppairs 2.5-inchfront coil spring spacers with a steel tapered 2-inch rear block kit, and it covers 1996-2025 models. Check your year, your series, and your drivetrain against the product page, and read the parts for GMCSavanna notes in the listing. Then open the main kit page and confirm your fitment before you order.

Source, Ridetrendz, Express and Savana Full Lift Kit

Conclusi:n, Pick the Lift That Matches Your Van and Your Load

The Express and Savana reward a simple and honest lift plan. Match the kit to the series, the drivetrain, and the load, and the van drives like a taller version of itself. GMC Savana van owners and Express owners share the same hardware, so one guide serves both badges. The Chevy Express 150,0 25, and00 3500 range all respond to the same fitment-first approach. The full range of Chevy Express van lift kits at Ridetrendz covers spacers, blocks, keys, and matched shocks. When you are ready, check the main kit for your van and order tthe Chevy Expresslift kit that matches your badge. A well-matched Chevy Express lift kit turns a plain work van into a confident all-rounder.

Source: Wikipedia, Chevrolet Express

Frequently Asked Questions About Lifting an Express or Savanna

How much lift does a Chevy Express need for bigger tires?

A 2 to 3 inch lift clears one to two tire sizes up on most Express and Savanna vans. The exact gain depends on your series and your wheel offset, so measure the wheelhouse at full lock before you buy tires. A mild lift also keeps the spare and the stock jack points in play.

Does lifting a van change the ride quality?

A mild lift keeps the ride close to stock when the kit uses spacers and matched shocks. The factory springs stay in place, so their rate and feel stay in place too. Tall spacer lifts on worn springs feel busier, so spring health matters as much as height.

What tire size fits a lifted Express 2500?

Most lifted 2500 vans fit one size taller than stock without trimming. The final answer depends on wheel offset and tire width. Chevy Express lift kit in the 2.5-inch range gives the room, and a lock-to-lock sweep confirms the fit.

Anyone running a lifted Savanna as a daily camper, and how bad is the highway sway?

Highway sway stays mild on aa 2- 2 to 3-inchlift with fresh shocks and correct tire pressure. Chevy enthusiasts forums carry long camper threads on this exact setup, and one Chevrolet forum build log after another reports calm manners. My own van Suburban lift searches before this build taught me the same lesson.

My 3500 passenger van rides rough after rear blocks; is that normal?

A small firming at the rear is normal, because the block stack and fresh U-bolts remove old slack. Harsh crashing is not normal, and it points to over-torqued hardware or tired shocks. Recheck torque and shock condition first, before the next loaded trip.

Does Ridetrendz sell a kit for a 2012 Express 1500 AWD?

Yes, Ridetrendz lists 4WD fitments in the Express and Savana range, and AWD vans sit inside that range. The Chevy Express GMC Savana AWD models use torsion bars, so the kit route runs through the torsion key. The fitment runs through the torsion key at the front and matched rear parts, so confirm the AWD badge on the order page.

How do I confirm fitment before I order a kit for Chevy Express vans from Ridetrendz?

You confirm fitment by matching three facts on the product page: your model year, your series, and your drivetrain. The main Express and Savanna lift kit page names the covered years and the 2WD fitment in the title. If any one of the three facts fails to match, pick the sister listing for your drivetrain instead of forcing the order.

Sour:e, Wikipedia, Chevrolet Express
